Product information “ER-Collet chuck PSK 63 – 2/20 – 130 | ER 32”

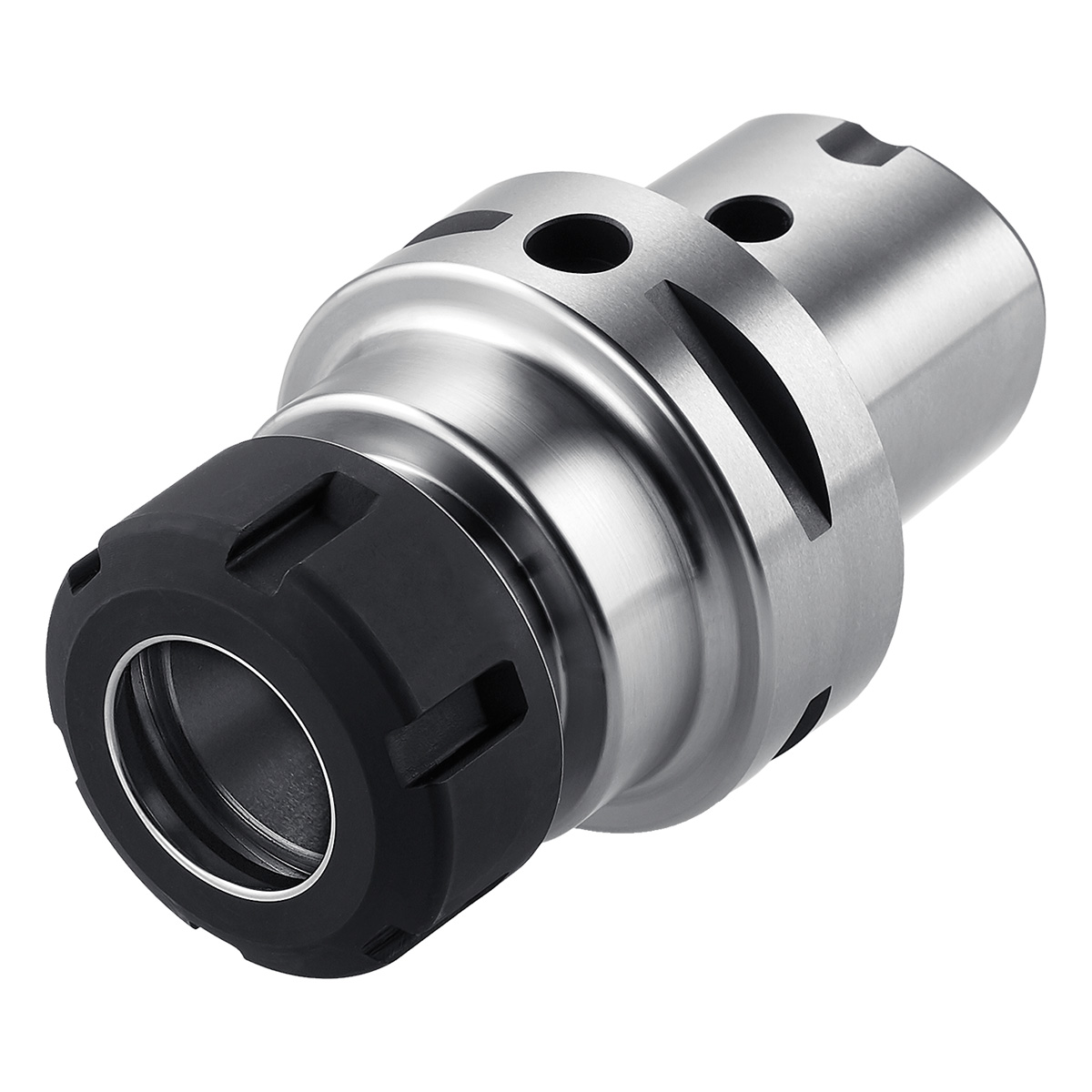

ER-Collet chuck PSK 63 – 2/20 – 130 | ER 32
€269.00
| Typ |
470E, ER 32 |
|---|---|
| ADINTMS |
CCS – Polygonschaftkegel |
| ADINTWS |
ISO 15488 (DIN 6499) ER |
| Auswuchtgüte |
25.000 1/min, G2,5 |
| DCONWS |
2 – 20 |

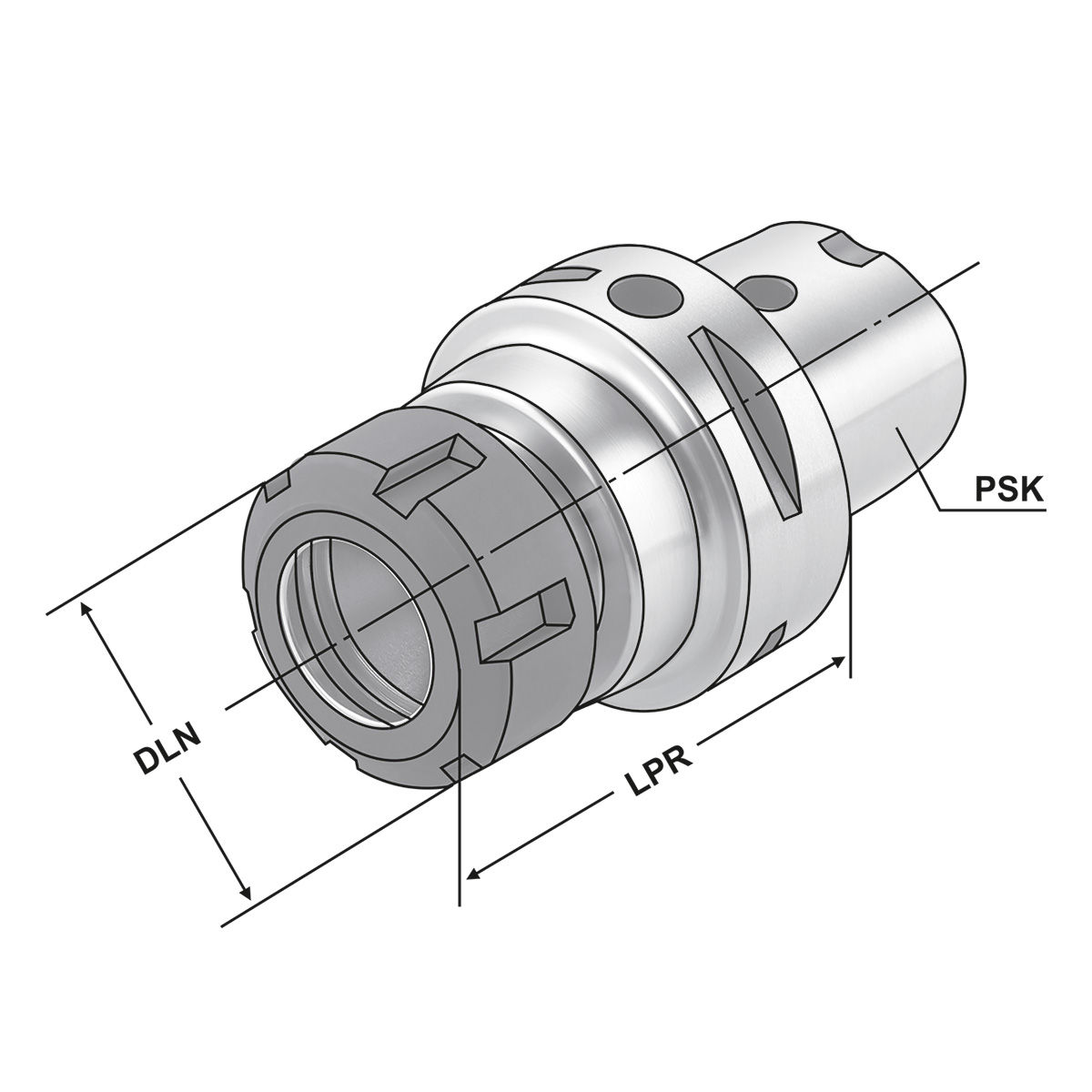

| DLN |
50 |
| LPR |
130 |
| PSK | |
| Rundlauf |
< 3µm |
| THID |
M10x1 |
