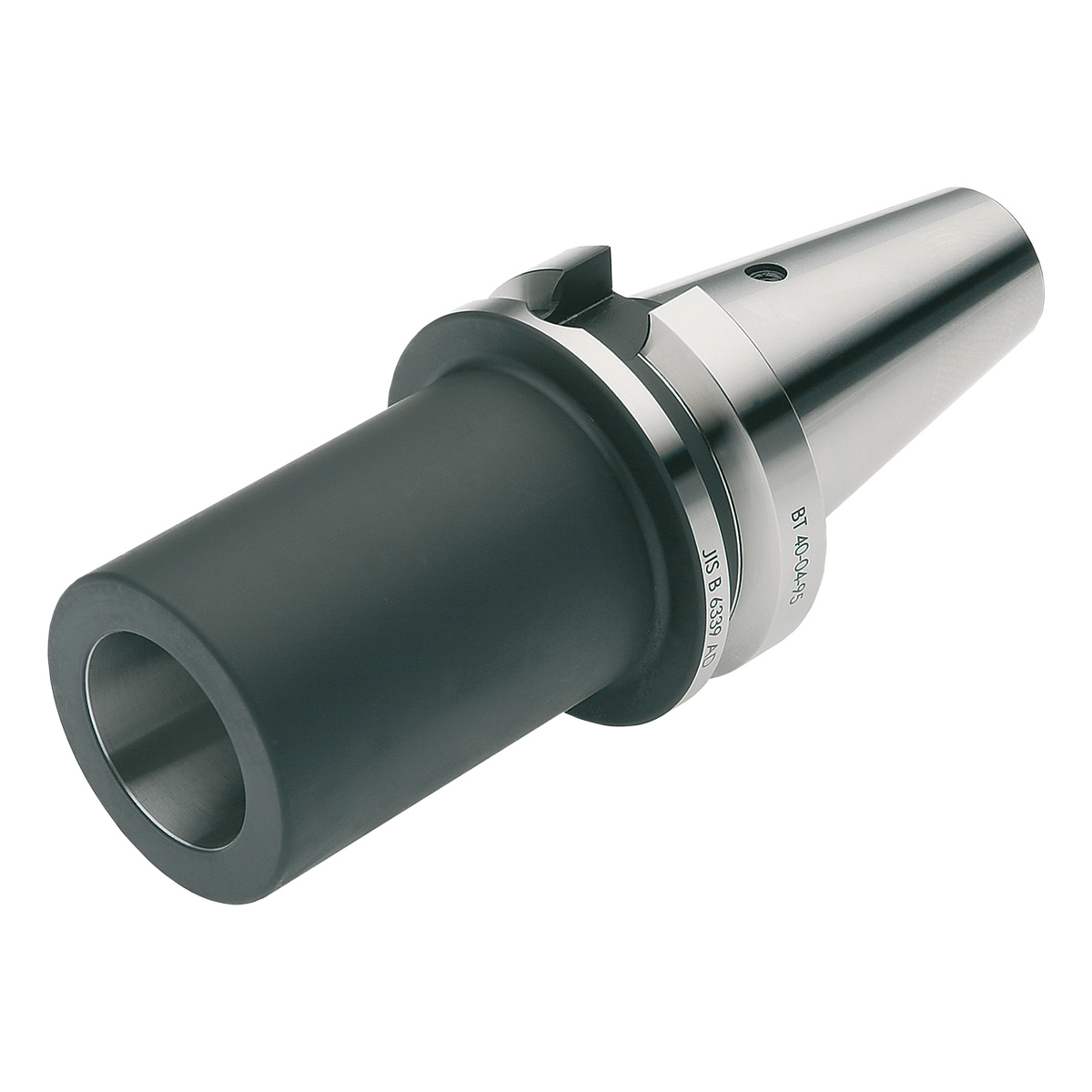

Product information “Morse taper adaptor BT 40 – 1 – 50”
Application:
For clamping tools with Morse taper shank and thread according to DIN 228-1 form A.
Delivery:
With built-in tightening bolt
Morse taper adaptor BT 40 – 1 – 50
€74.00
Application:
For clamping tools with Morse taper shank and thread according to DIN 228-1 form A.
Delivery:
With built-in tightening bolt
| ADINTMS |
ISO 7388-2 (MAS-BT) |
|---|---|
| ADINTWS |
DIN 6364 |
| Auswuchtgüte |
15.000 1/min, G6,3 |

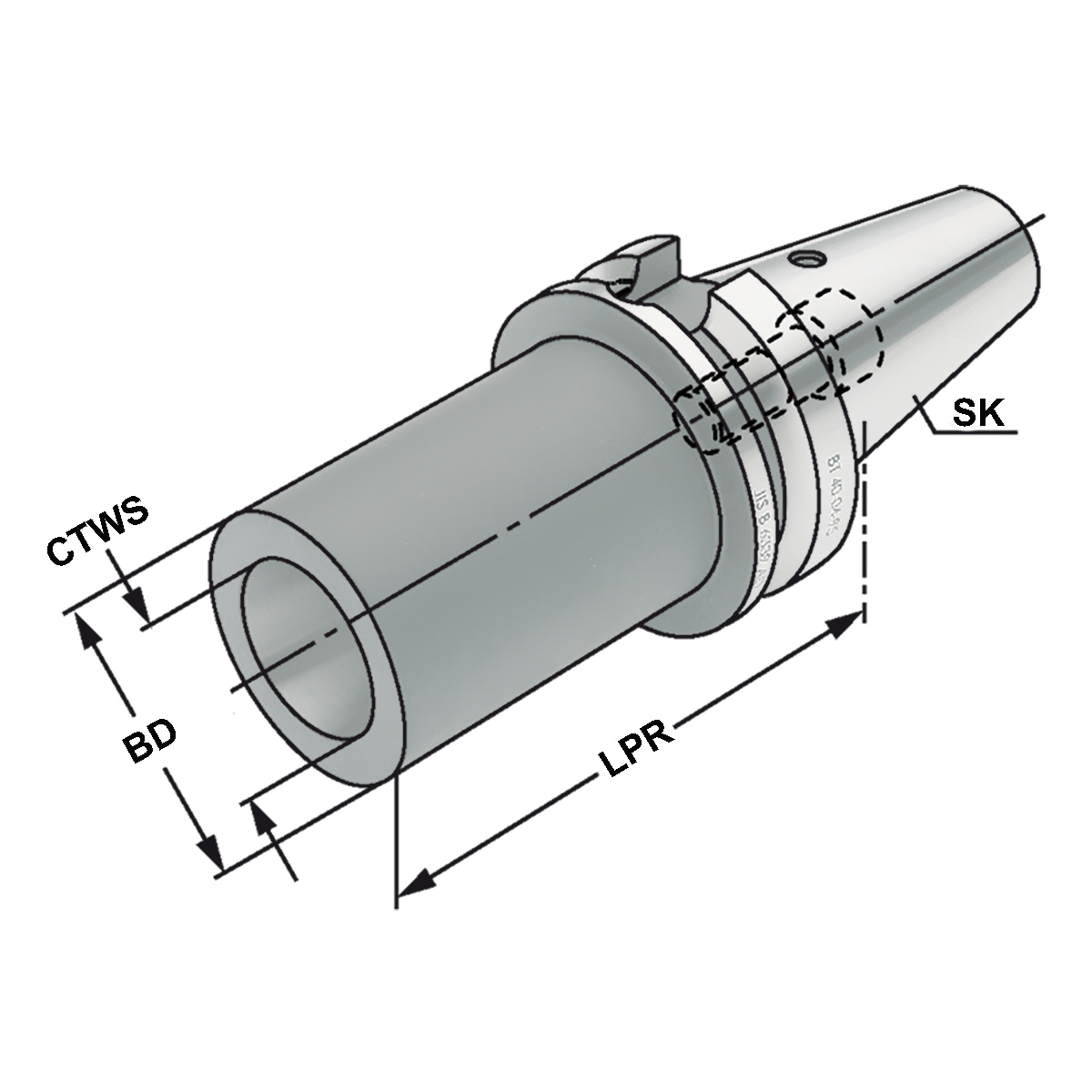

| BD | |
| CNSC |
JD (AD) |
| CTWS | |
| LPR |
50 |
| Rundlauf |
< 5µm |
| SK |
BT 40 |
| THID |
M6 |
