Product information “Pair of clamping jaws for ATW-675 | ATW-689 | TLD-60 | MG-60 | AMC-60”
151 x 44,5 x 18

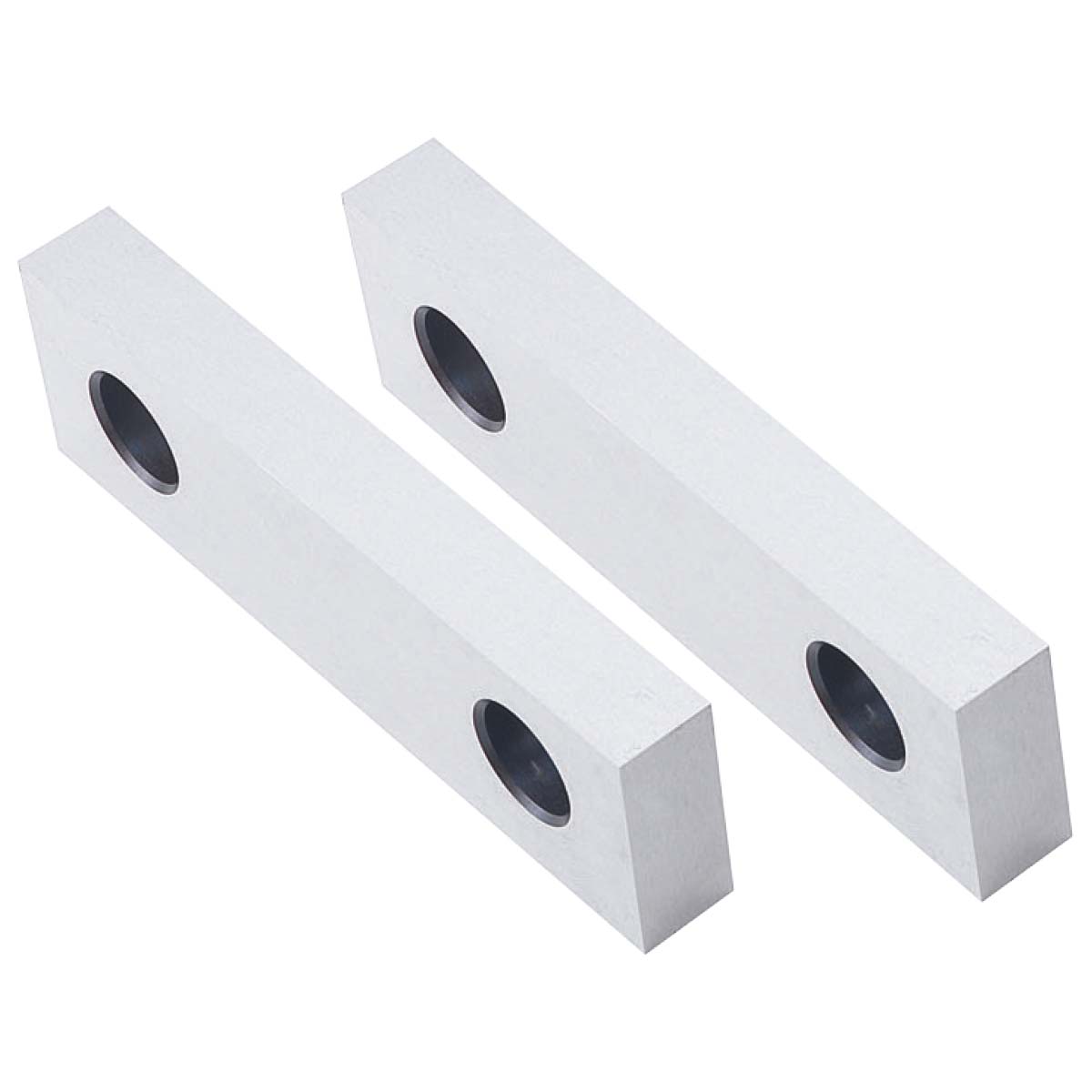

Pair of clamping jaws for ATW-675 | ATW-689 | TLD-60 | MG-60 | AMC-60
€103.00
151 x 44,5 x 18

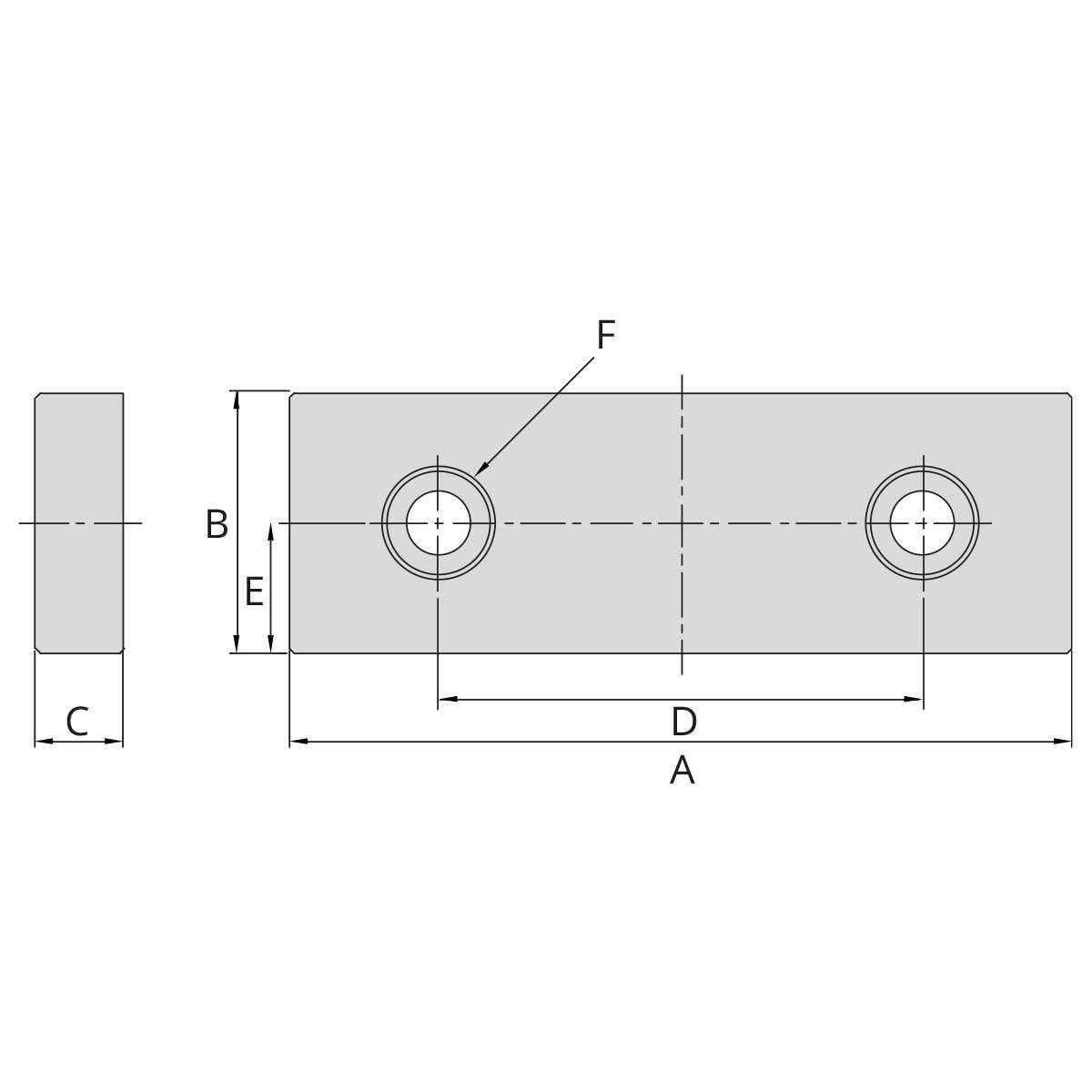

| A |
151 |
|---|---|
| Ausführung |
AMC-60, ATW-675, ATW-689, MG-60, TL |
| B |
44,1 |
| C |
18 |
| D |
98,4 |
| E |
23,8 |
| F |
Description
2D & 3D Zeichnungen
