Product information “Swivel base for machine vice ATW-40 / ATD-460”
Construction:
Bearing edge ground, 360° graduations for angular adjustment.
Delivery:
With securing screws and Tee-nuts.

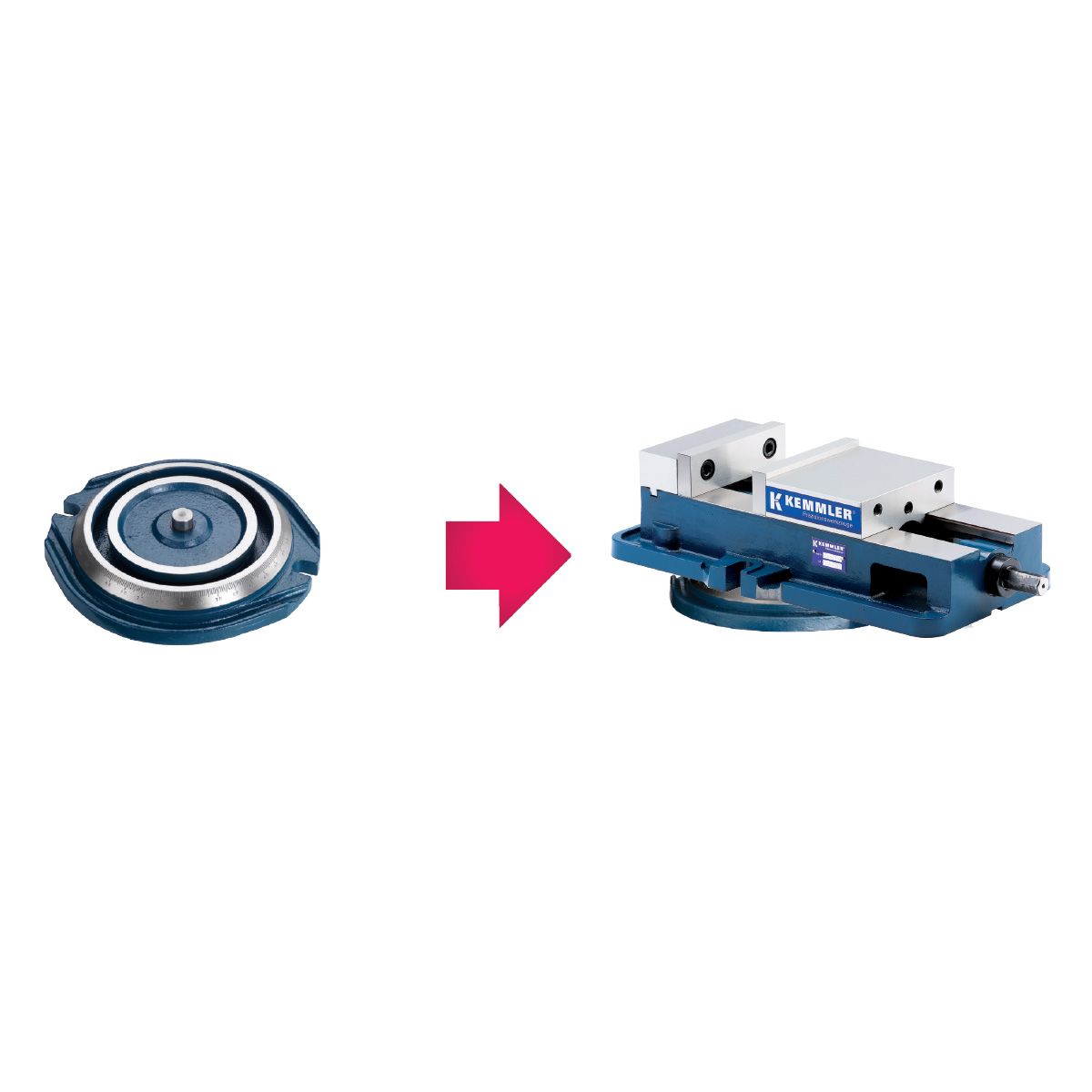

Swivel base for machine vice ATW-40 / ATD-460
€133.00
Construction:
Bearing edge ground, 360° graduations for angular adjustment.
Delivery:
With securing screws and Tee-nuts.

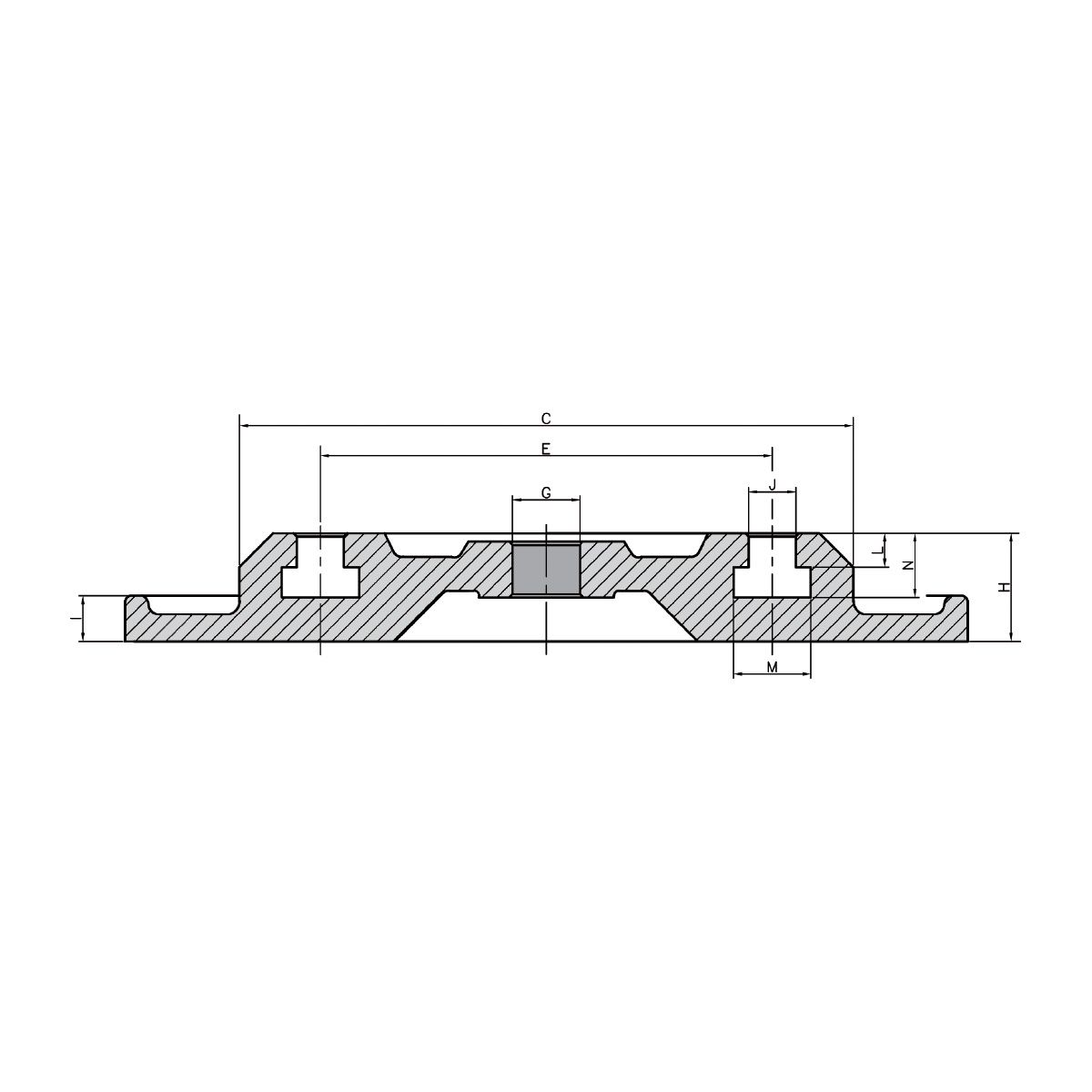

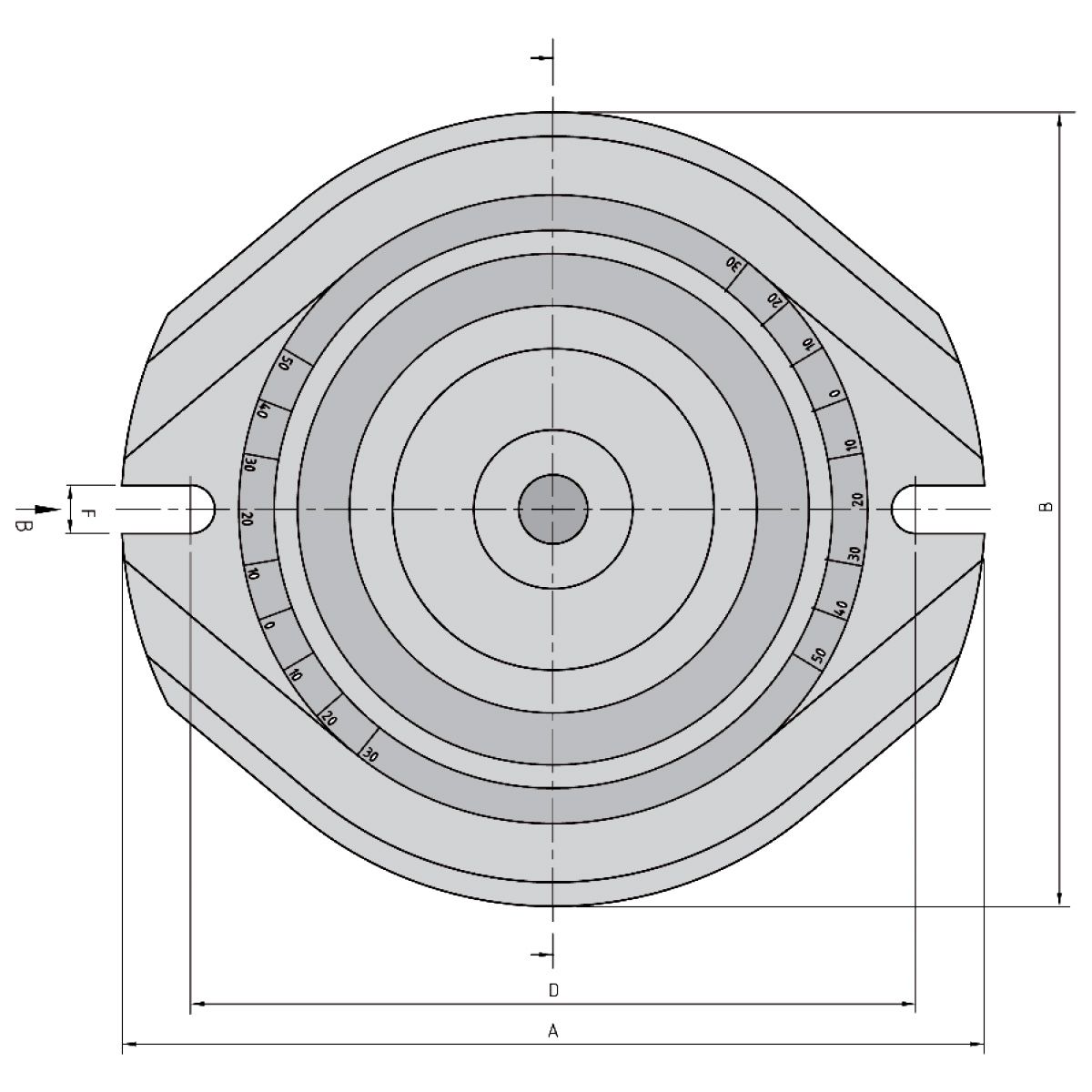

| A |
250 |
|---|---|
| Ausführung |
ATW-40 / ATD-460 |
| B |
230 |
| C |
182 |
| D |
210 |
| E |
134 |
| F | |
| G | |
| H |
32 |
| I | |
| J | |
| L |
10 |
| M | |
| N |
Description
2D & 3D Zeichnungen
