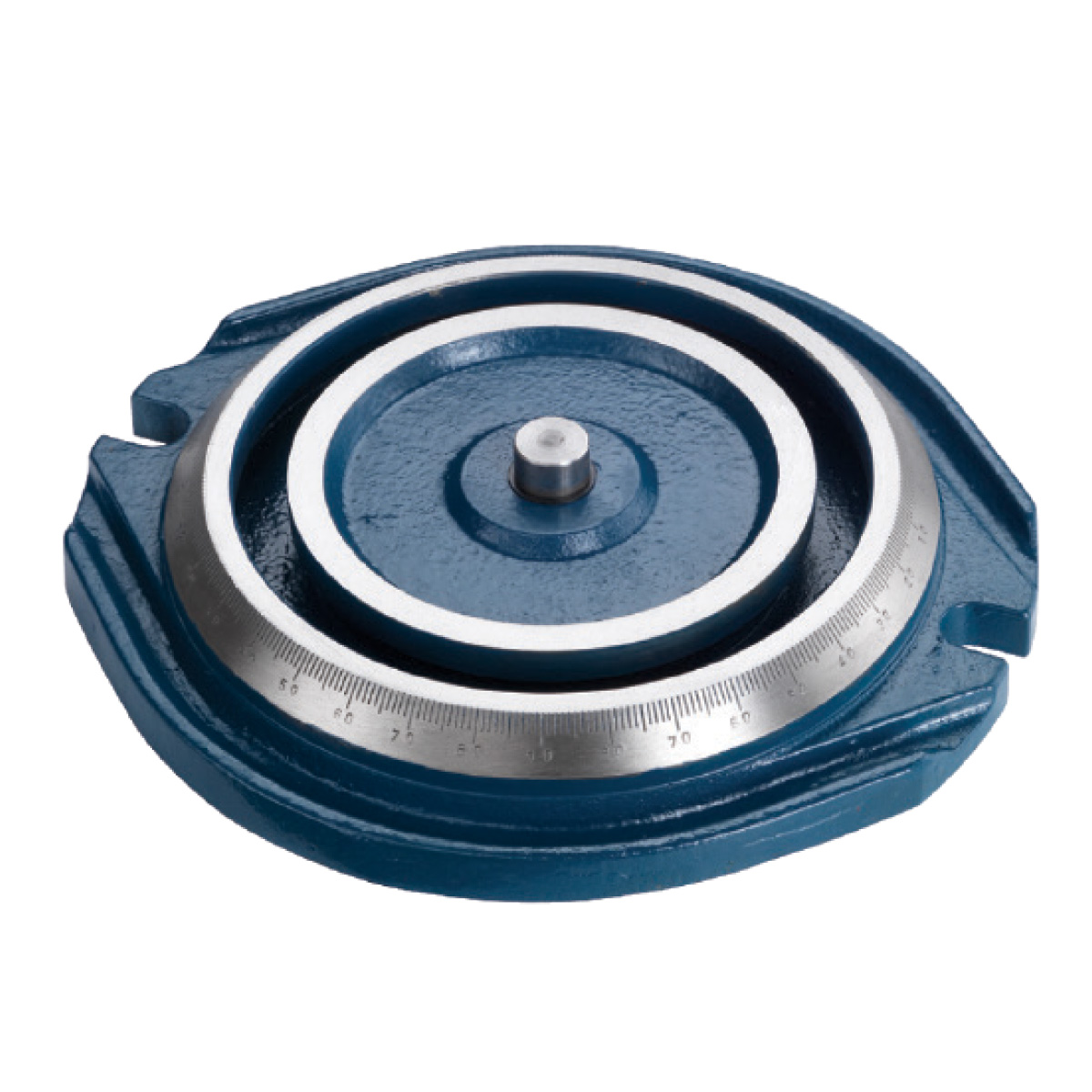

Product information “Swivel base for machine vice HP-40”
Construction:
Bearing edge ground, 360° graduations for angular adjustment.
Delivery:
With securing screws and Tee-nuts.

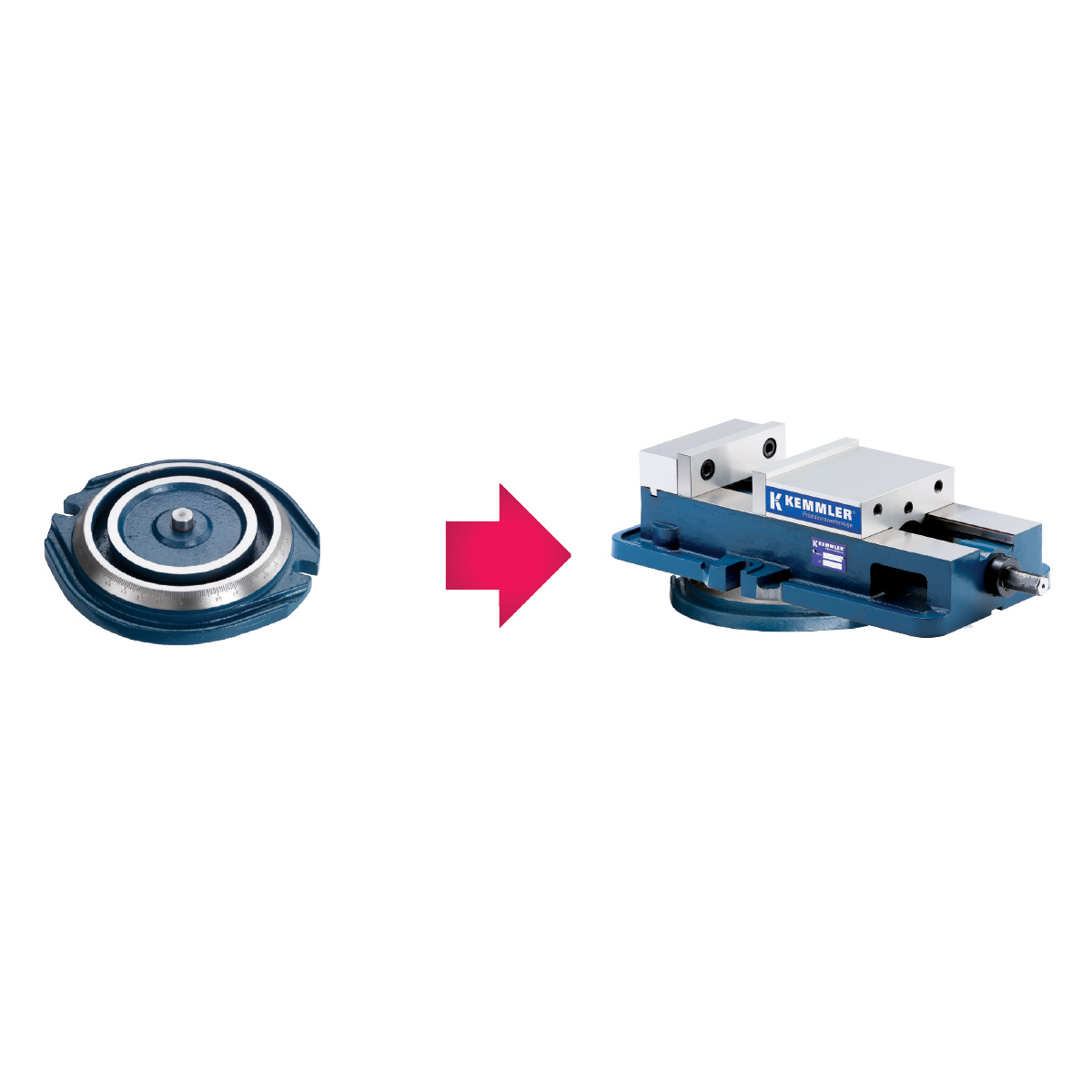

Swivel base for machine vice HP-40
€133.00
Construction:
Bearing edge ground, 360° graduations for angular adjustment.
Delivery:
With securing screws and Tee-nuts.

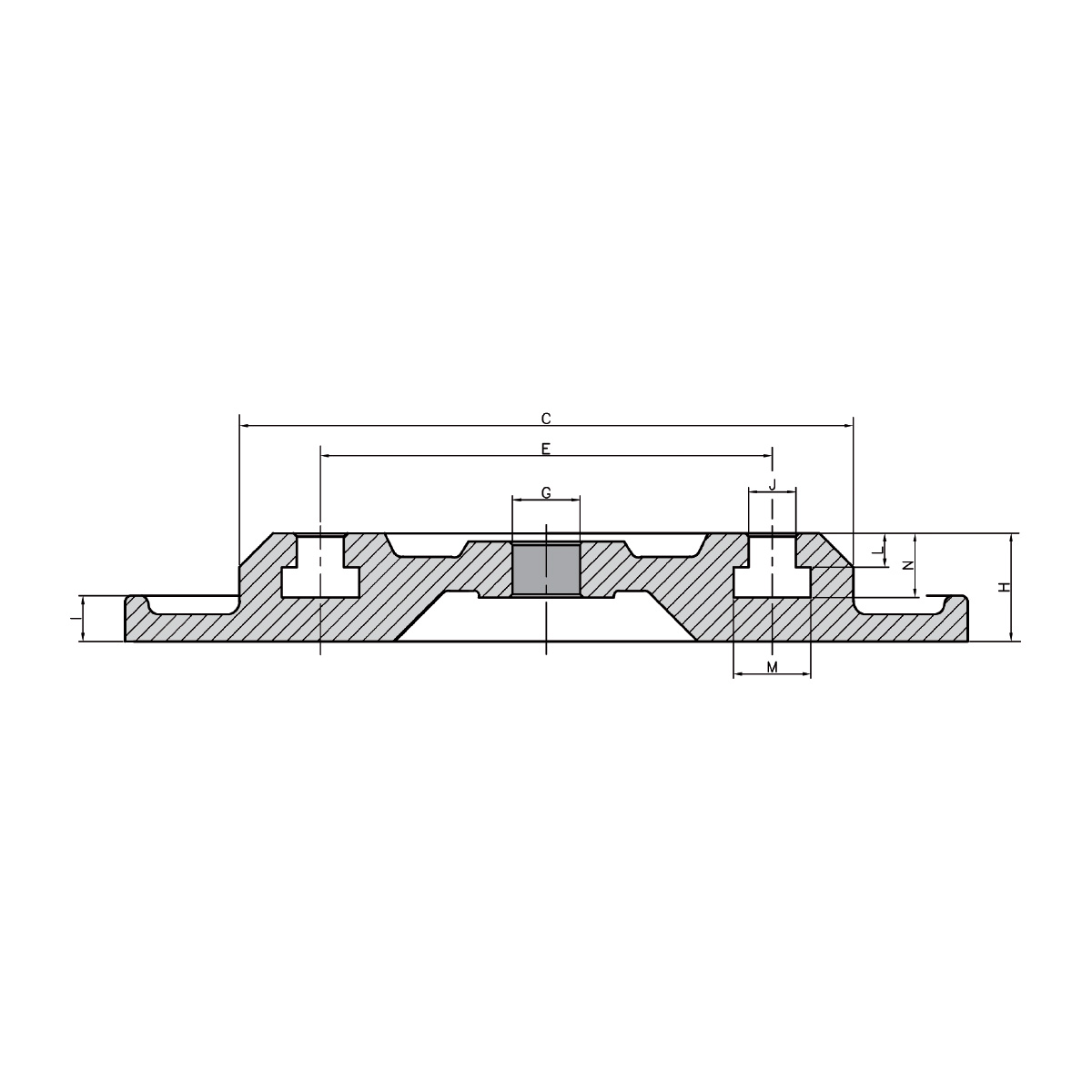

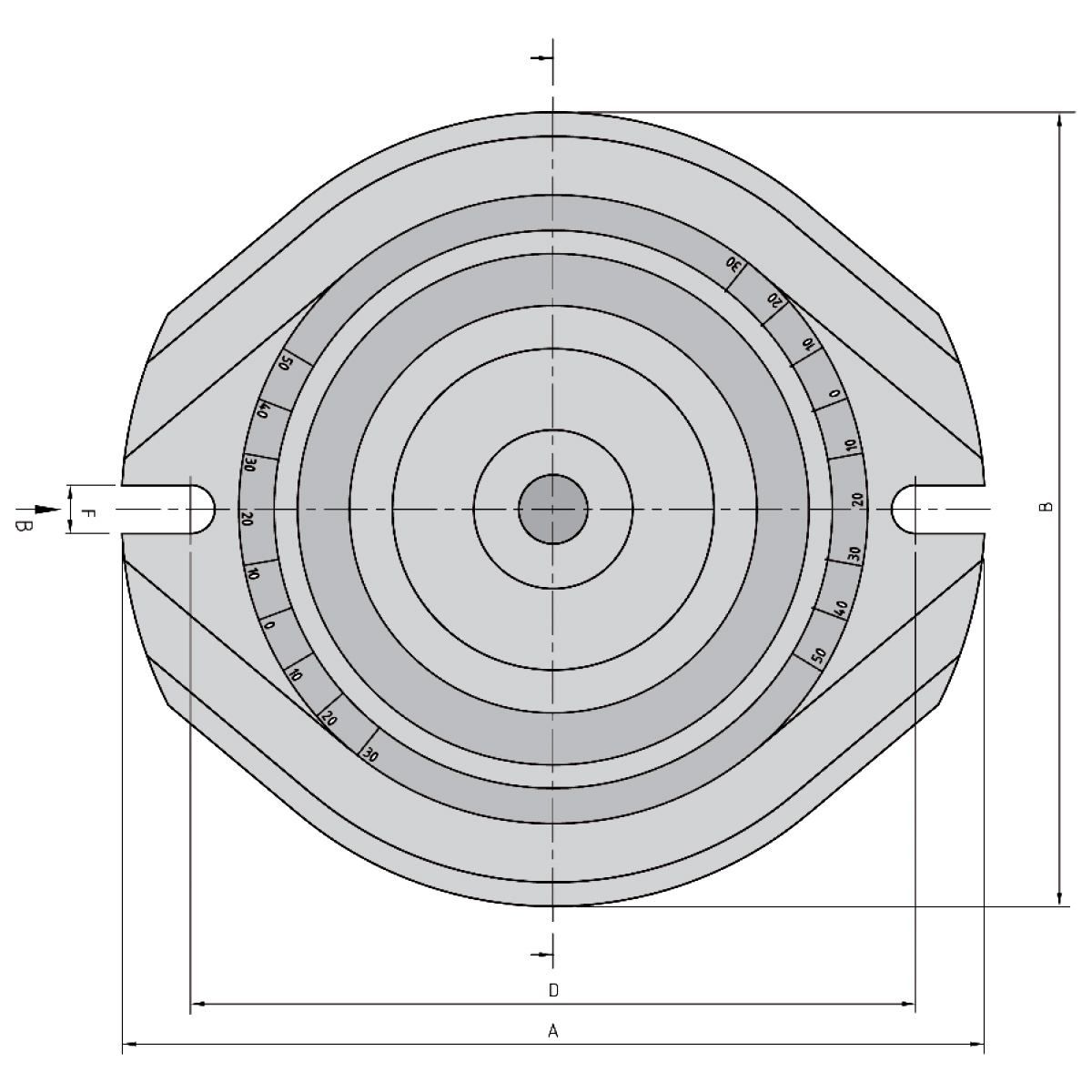

| A |
233 |
|---|---|
| Ausführung |
HP-40 |
| B |
220 |
| C |
167 |
| D |
197 |
| E |
125 |
| F | |
| G | |
| H |
2,5 |
| I | |
| J | |
| L |
7 |
| M | |
| N |
Description
2D & 3D Zeichnungen
