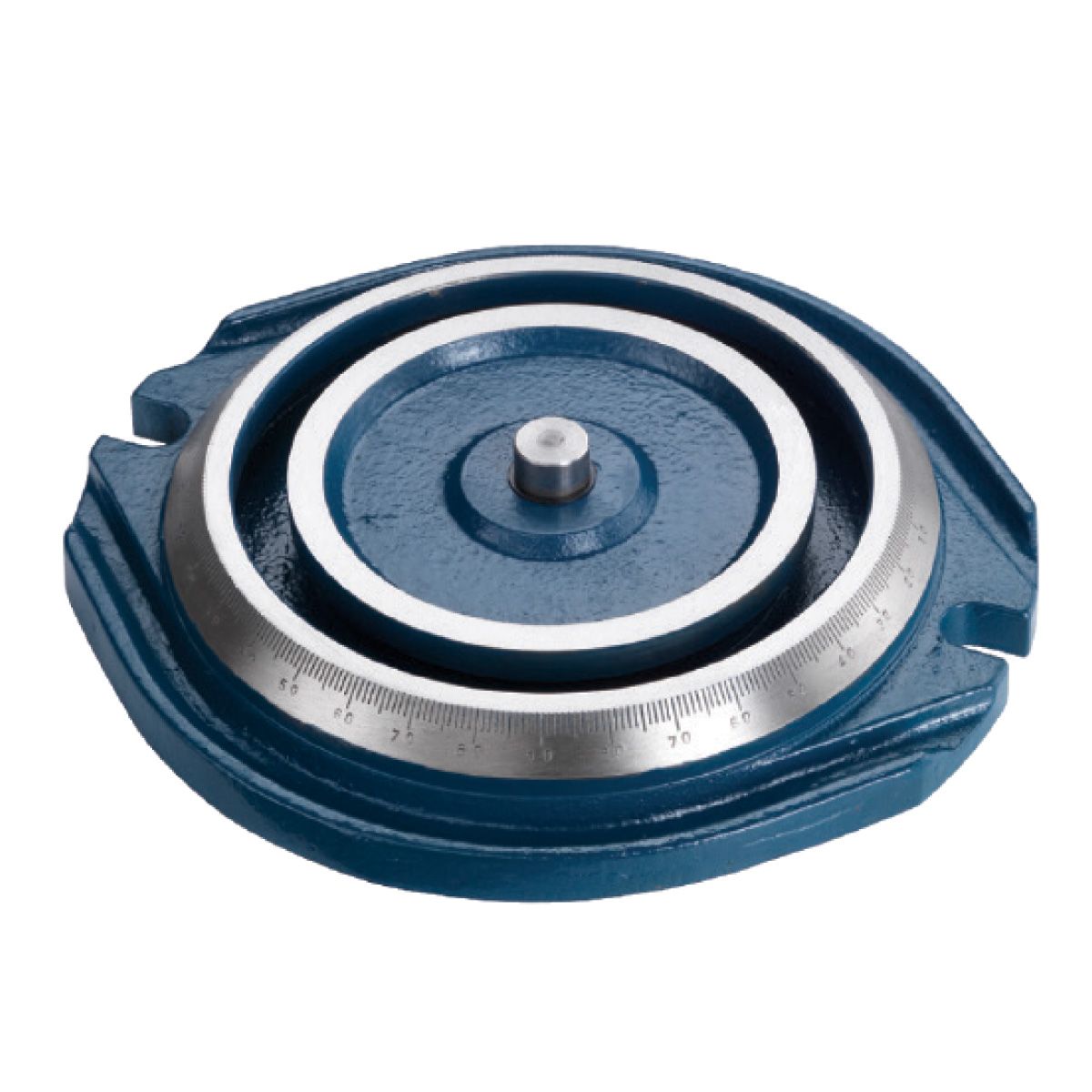

Product information “Swivel base for machine vice HP-50 / MP-50”
Construction:
Bearing edge ground, 360° graduations for angular adjustment.
Delivery:
With securing screws and Tee-nuts.

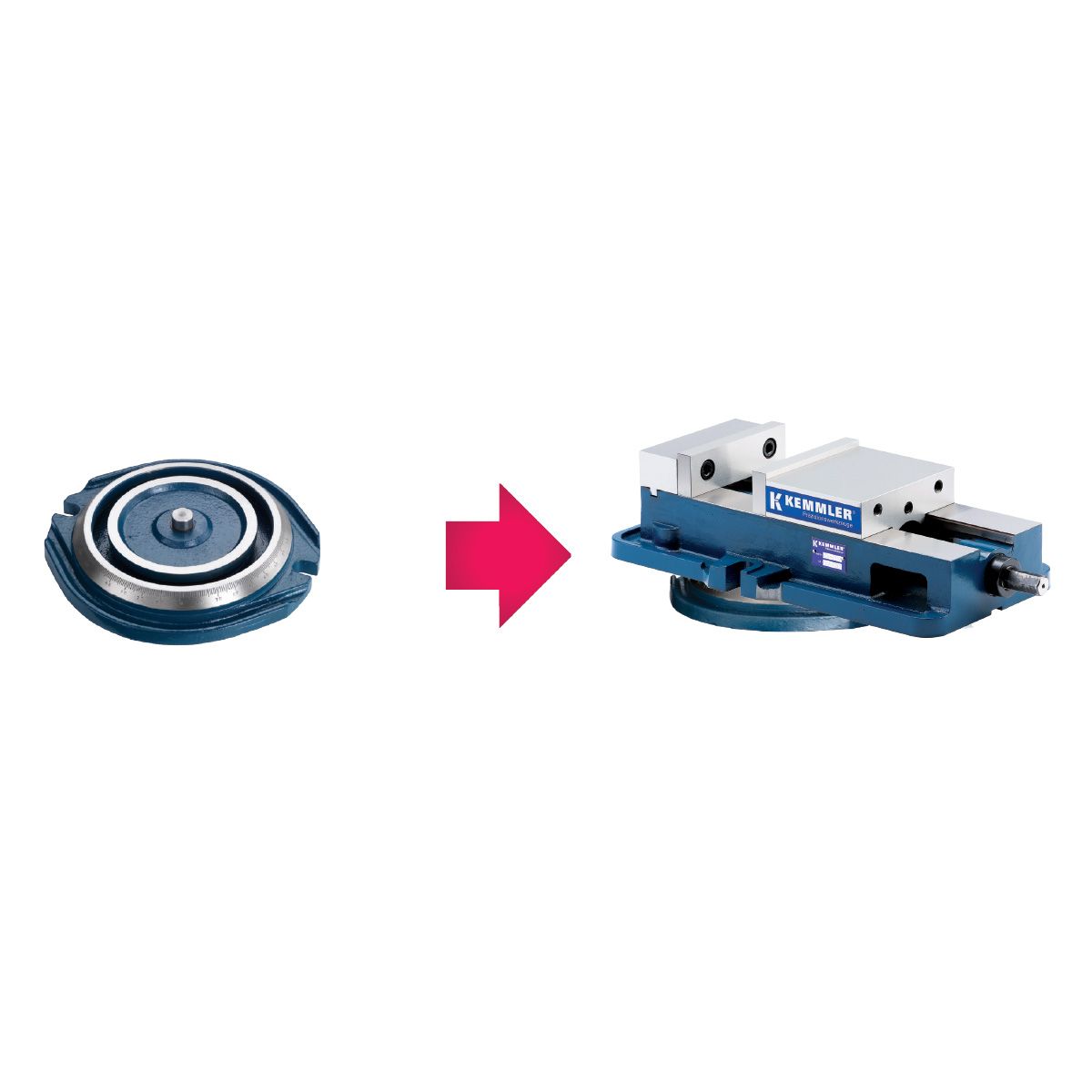

Swivel base for machine vice HP-50 / MP-50
€142.00
Construction:
Bearing edge ground, 360° graduations for angular adjustment.
Delivery:
With securing screws and Tee-nuts.

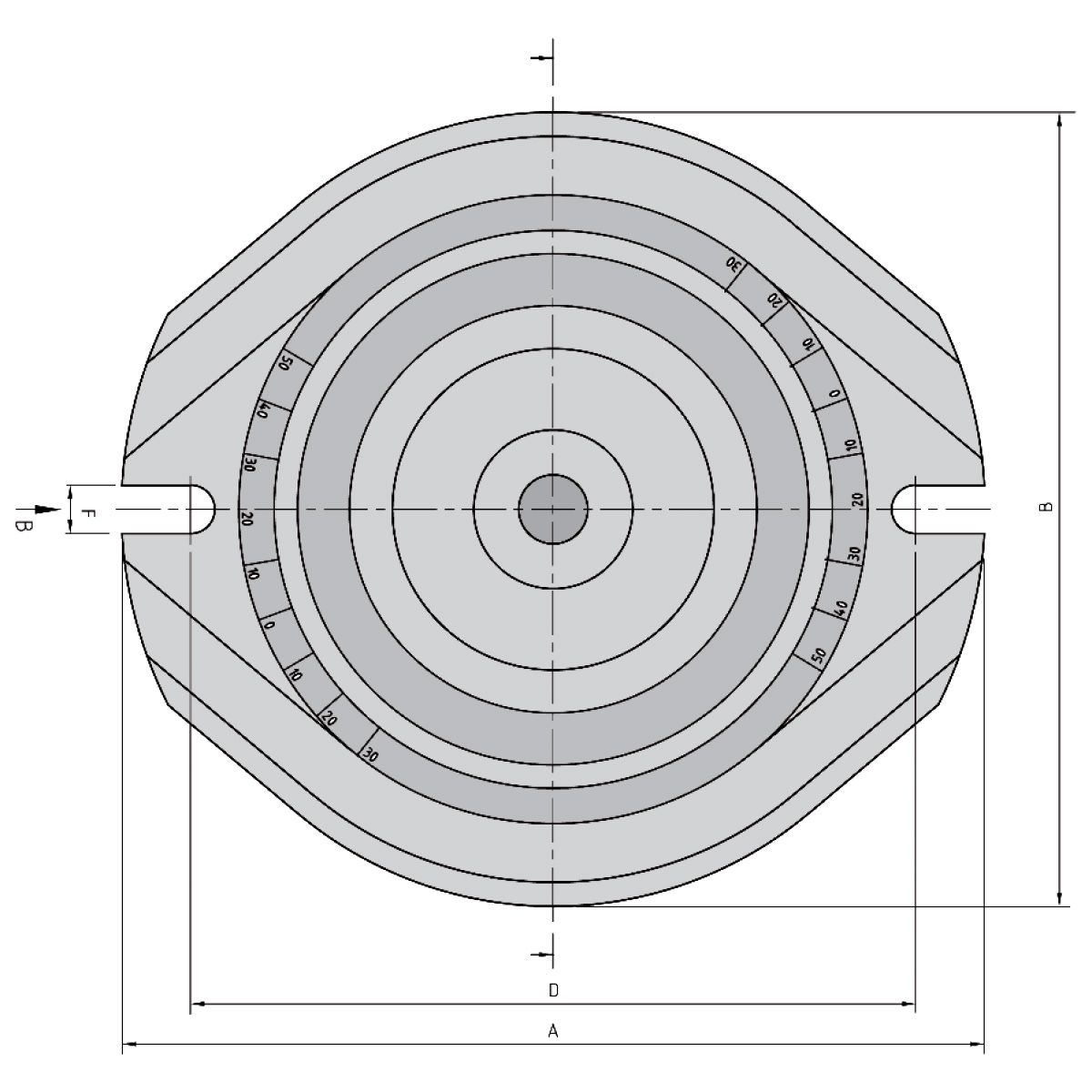

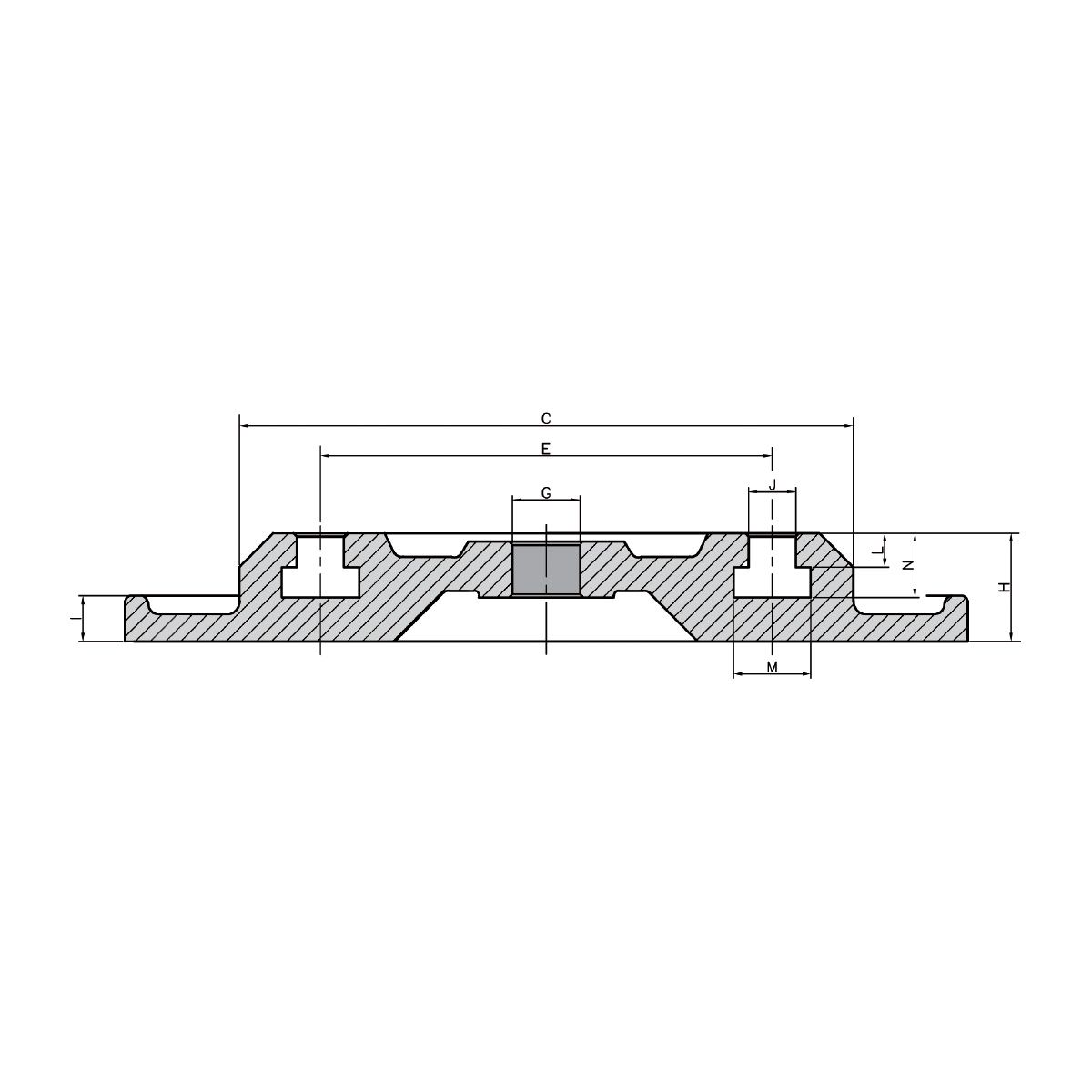

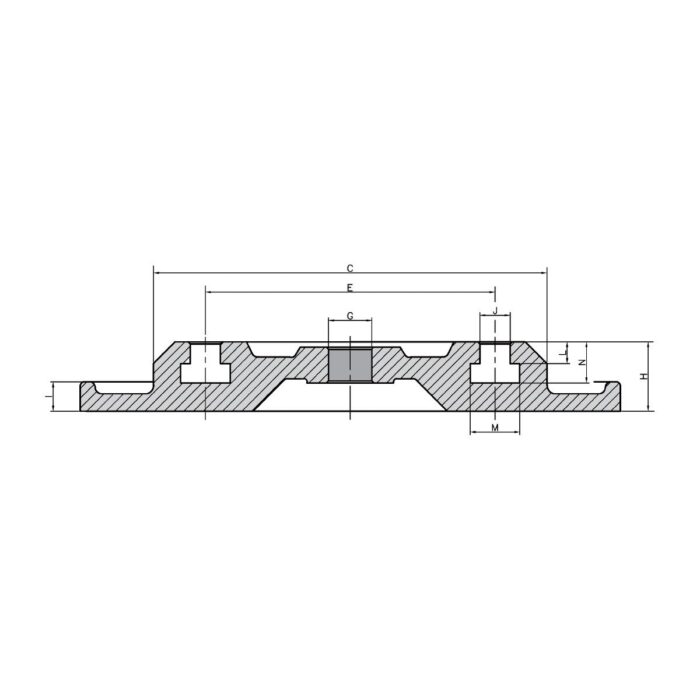

| A |
272 |
|---|---|
| Ausführung |
HP-50 / MP-50 |
| B |
260 |
| C |
212 |
| D |
239 |
| E |
160 |
| F | |
| G | |
| H |
33 |
| I | |
| J | |
| L |
10 |
| M | |
| N |
Description
2D & 3D Zeichnungen
